PSA oxygen gas cylinder filling plant

PSA oxygen gas cylinder filling plant

PSA oxygen gas cylinder filling plant
CategoriesPSA Oxygen generator
AlbumView larger image
BrandKL gas generator
ModelKPO10
Product NamePSA oxygen gas cylinder filling plant
BrandKL
Model numberKPO-10
Warranty12 months
After-sales Service ProvidedEngineers available to service machinery overseas
TechnologyPSA
Dew point≤-40℃
Outlet pressure0.2-0.4MPa(Adjustable)
Unit PriceUS $ 20000-50000 / piece
FOB portShanghai or Ningbo port, or other China sea port
Terms of PaymentL/C, T/T
Download DOC
Update Time2019-05-22
Detail Information

PSA oxygen gas cylinder filling plant

Comprehensive presentation:


PSA oxygen gas cylinder filling plant Features:

* Low investment, small workload of construction;

* Low energy consumption, advanced process system;

* High automation, less operators;

* Quickly start, and conveniencely open and shut down;

* Low costs of maintenance;

* Stable operation and highly reliable;

* High quality pneumatic control valves, safe, reliable and durable;

* High quality special oxygen molecular sieve adsobent, good adsorption properties.

How it works ?

The raw air will be removed its particle by inlet filter and then be pressurized to about 40Kpa.

The air temperature from the air blower is about 75C, after to be cooled by cooling water, it will flows into one of

adsorption tower which  filled with adsorber.When the raw air flows from the bottom tower to upper tower,  the

nitrogen will be adsorbed, oxygen will be oncentrated at the top of tower and be delivered out as product gas.

When the adsorber almost reaches to saturation, in the action of controller, the valves will be switched, the raw

air flows into annother adsorption tower to adsorb.

Saturated adsorption tower will be decompressurized to atmosphere pressure and then be vacuumized to about

-60Kpa,product gas will be introduced into the tower to pruge the adsorption bed, thereby,the adsorber will   bedesorbed, and  prepare for the next cycle.

The two adsorption towers adsorb and desorb alternately to produce oxygen gas continuously.

Raw air shifting from one adsorption tower to another tower is controlled by pneumatic valves, the action process

of valves is realized by PLC controller. Centralized control system enables the whole system to  work   automatically.

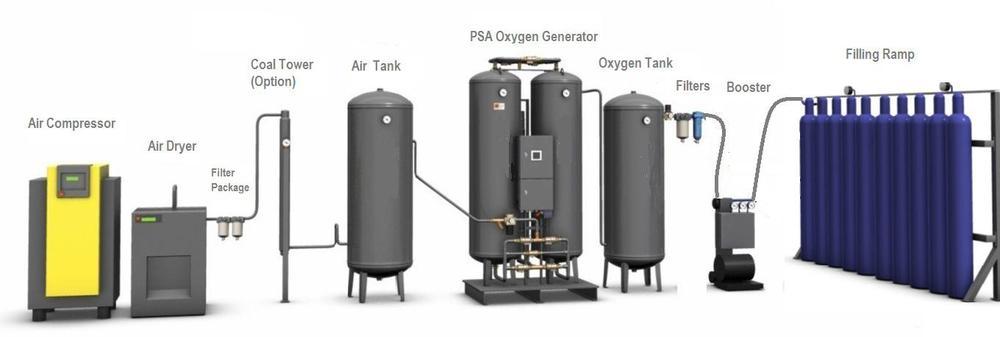

Flow Chart:

1.Air compressor one set

2.Compressed air pretreatment system (dryer and multistage filters) one set

3.Air buffer tank one set

4.PSA oxygen generator one set

5.Oxygen gas buffer tank one set

6.Oxygen booster one set

7.Filling station one set

8.Control system one set (including man-machine control interface)

9.Instrument and meter (installed in nitrogen generator) one set



PSA oxygen gas cylinder filling plant Specifications:


ModelCapacity(Nm3/h)Air consumption(Nm3/min)PurityPressure(Bar)
KPO-330.893+-2%0.2-0.4
KPO-551.25
KPO-10102.5
KPO-20205
KPO-30307.5
KPO-505012
KPO-606015
KPO-808019.5
KPO-10010023.5
KPO-15015035
KPO-20020048

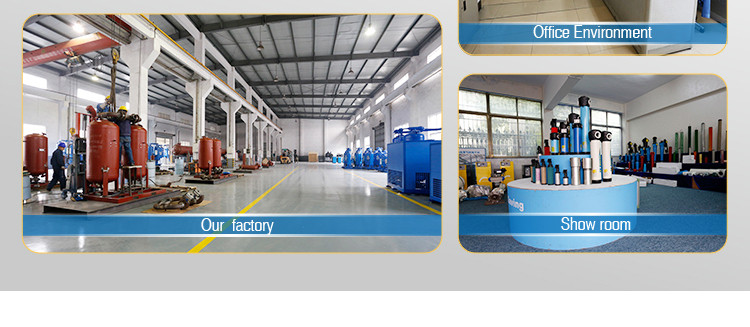

Factory and showroom:
